Discover the BlueSAO Difference
BlueSAO
TPLO Locking plate system
Engineered for precision and confidence, the BlueSAO TPLO System provides a comprehensive solution for the treatment of cranial cruciate ligament disease using the TPLO technique. The system combines anatomically optimized plate designs with advanced locking technology to deliver secure fixation, enhanced construct stability, and consistent surgical outcomes.
Designed to meet the demands of modern veterinary orthopaedics, BlueSAO implants facilitate accurate osteotomy stabilization, support early weight bearing, and contribute to a smooth postoperative recovery.

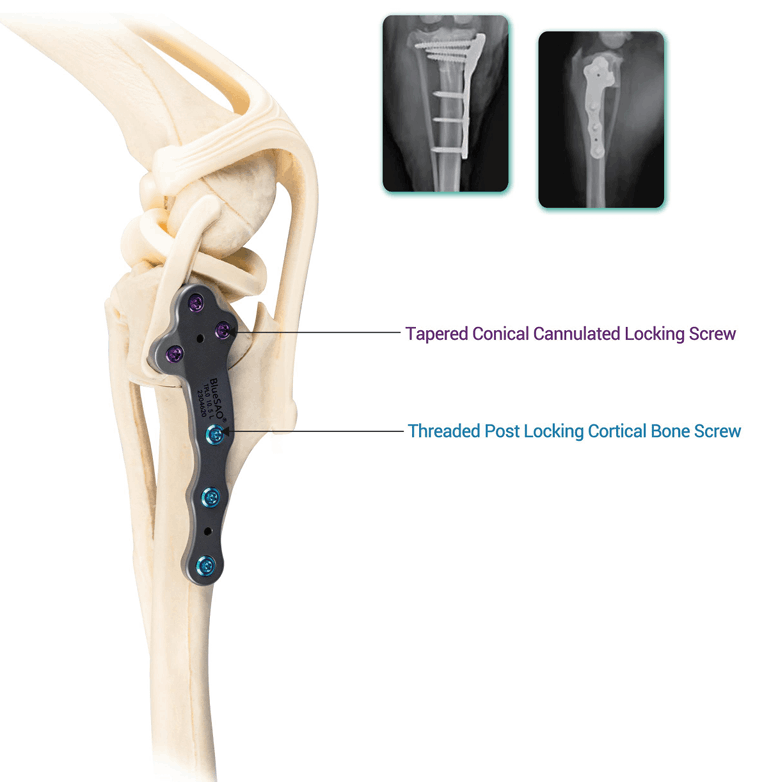

BlueSAO TPLO Implants
Bone plate (L/R)
Material: Titanium
| W1 | W2 | L |
| 4.00mm-11.5mm | 11.5mm-24.2mm | 38.7mm-80.9mm |
BlueSAO TPLO Screws
HC Locking screw
| Screw type | Diameter | Length |
| HC Locking screw | ⌀ 2.4 | 16-26 mm |
| ⌀ 3.5 | 24-40 mm | |
| ⌀ 4.0 | 30-50 mm | |
| Locking screw | ⌀ 2.4 | 5-8 mm |
| ⌀ 3.2 | 6-20 mm | |
| ⌀ 4.0 | 10-24 mm | |
| Cortical screw | ⌀ 1.5 | 6-22 mm |
| ⌀ 2.4 | 10-32 mm | |
| ⌀ 2.7 | 12-34 mm |
BlueSAO TPLO Tools

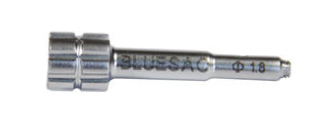

HC Drill sleeve(locking)
| Available sizes | ⌀1.8, 2.5, 3.0 mm |
Drill Sleeve (Screw-in)
| Available sizes | ⌀ 1.1, 1.8 |

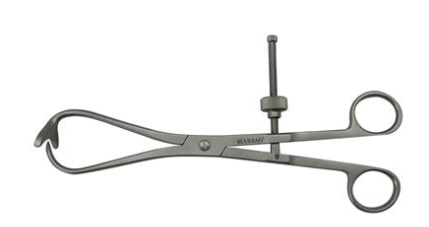

TPLO Reduction forceps
| Available sizes | S 17.8cm, L 21.6cm |
Screw forceps
| Available sizes | Mini |
Drill bit (quick coupling)
| Available sizes | ⌀ 1.1, 1.8, 2.5 |
Drill sleeve (compressed)
| Available sizes | ⌀ 1.1, 1.8 |

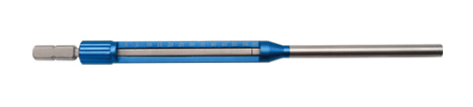

Depth Gauge
| Available sizes | 40mm, 60mm |
TPLO Saw blade
| Available sizes | R10, R12 |

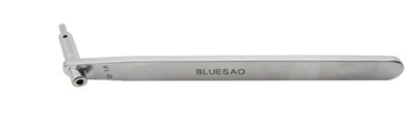

Screwdriver (quick coupling)
| Available sizes | S, L |
Screwdriver handle
| Available sizes | — |

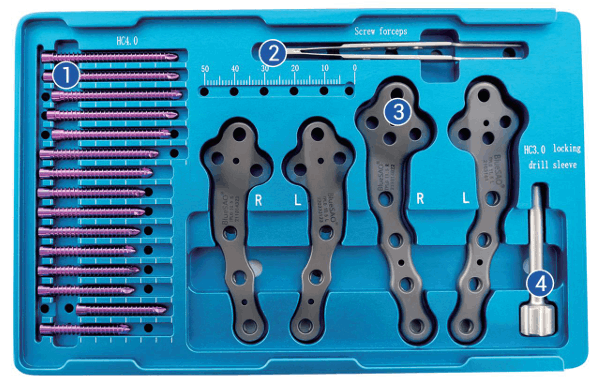

TPLO system sets
| Available sizes | TPLO Mini, TPLO S, TPLO M, TPLO L |
| Each set containes: | 9-15 psc HC drills(1), Screw forceps(2), 4 bone plates(3), HC drill sleeve (4) |

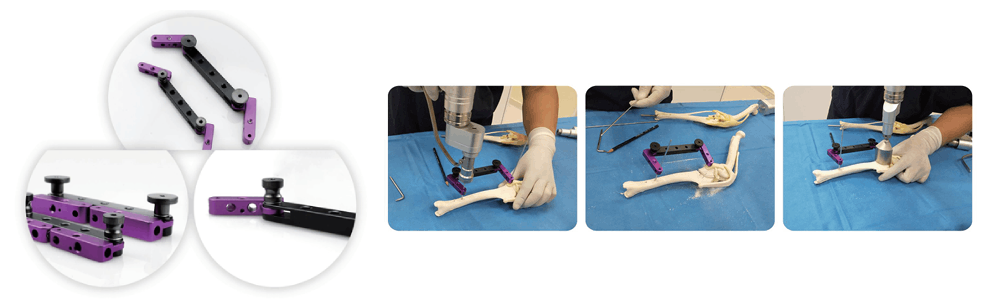

JIG
| Available sizes | S, L |
The Science Behind Every Fixation
Precision Engineering.
Proven Recovery.
BlueSAO combines advanced materials, precise engineering, and biologically-conscious design to deliver implant systems veterinary surgeons can rely on — from fracture fixation to joint reconstruction. Backed by real surgical outcomes worldwide and hands-on training programs, every system is built to support stability, faster healing, and long-term patient recovery.
Our comprehensive portfolio covers a wide range of orthopedic procedures and patient sizes — from small companion animals to large breeds and from everyday fracture management to advanced reconstructive surgery.
With BlueSAO, surgeons have access not simply to individual implants, but to complete orthopedic solutions designed around the realities of modern veterinary surgery.
High-Strength Titanium Implants
Biologically-Conscious Engineering
Advanced Locking Technology
Comprehensive System Range
Strong R&D and innovation
Anatomically Optimized Designs
40+
Countries Worldwide
BlueSAO products are exported to over 40 countries worldwide, with established distributors across dozens of countries.
50+
Patents Registered
BlueSAO holds over 80 trademarks and more than 50 patents.
