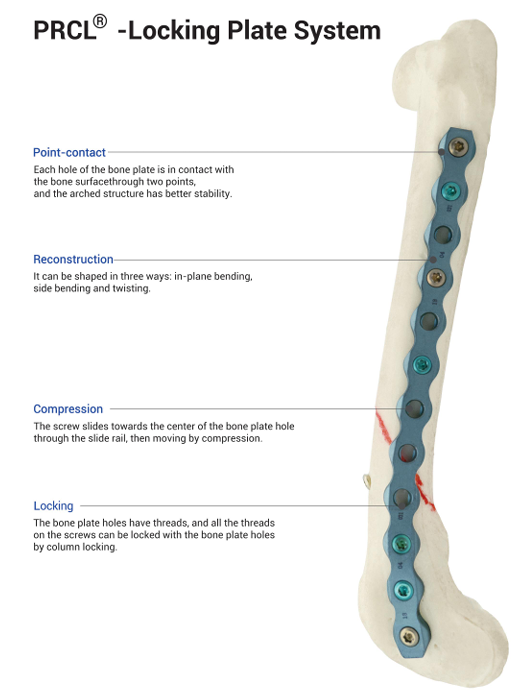

PRCL Locking plate system
PRCL is One of the most advanced and widely used system kits in animal orthopedics today.
The BlueSAO PRCL System offers a comprehensive solution for internal fixation in veterinary orthopedics. Featuring high-strength titanium implants with advanced locking and compression technology, the system provides excellent stability and precise fracture fixation. Its low-contact plate design is intended to minimize disruption of the periosteal blood supply, helping to create favorable conditions for bone healing and functional recovery.
BlueSAO PRCL Implants
Bone plate
Material: Titanium
| Size | Width | Length | Holes |
| Mini | 3.5-4.0mm | 79.5-89.5mm | 20 |
| S | 5-6.5mm | 236.5-238mm | 34-43 |
| M | 8-9mm | 234-231mm | 22-26 |
| L | 10-11mm | 216-234mm | 18 |
T-shaped Bone plate
Material: Titanium
| Size | Width | Length | Holes |
| S | 5-6.5mm | 32.5-41.5mm | 6 |
| M | 8-9mm | 51-59mm | 6 |
| L | 10-11mm | 67-73.5mm | 6 |
L-shaped bone plate
Material: Titanium
| Size | Width | Length | Holes |
| S | 5-6.5mm | 36.7-47.4mm | 7 |
| M | 8mm | 58.1mm | 7 |
BlueSAO PRCL Screws
Bone plate
|
Screw type |
Diameter |
Length |
|
Locking screw |
⌀ 1.0 |
5-12 mm |
|
⌀ 1.5 |
6-30 mm |
|
|
⌀ 2.4 |
10-32 mm |
|
|
⌀ 2.7 |
12–34 mm |
|
|
Cortical screw |
⌀ 1.6 |
5-10 mm |
|
⌀ 2.4 |
5-16 mm |
|
|
⌀ 3.2 |
6-20 mm |
|
|
⌀ 4.0 |
10-24 mm |
BlueSAO PRCL Tools

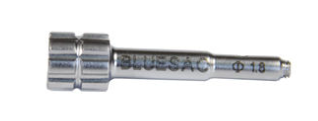

Drill Sleeve (Screw-in)
| Available sizes | ⌀ 1.1, 1.8 |
Drill Sleeve (locking)
| Available sizes | ⌀ 1.1, 1.8, 2.5, 3.2 |
Drill sleeve (Neutral)
| Available sizes | ⌀ 0.7, 1.1, 1.5, 1.8, 2.5, 2.0, 2.7 |
Drill sleeve (compressed)
| Available sizes | ⌀ 0.7, 1.1, 1.8 |
Drill bit (quick coupling)
| Available sizes | ⌀ 0.7, 1.1, 1.5, 1.8, 2.0, 2.5, 2.7, 3.2 |
Screw forceps
| Available sizes | Mini |

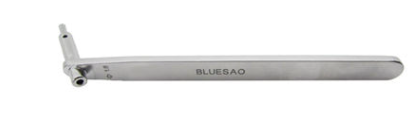

Drill Stop Spanner
| Available sizes | Mini |
Drill Stop
| Available sizes | ⌀ 1.1, 1.8, 2.5, 3.2 |
Screwdriver (quick coupling)
| Available sizes | S, L |

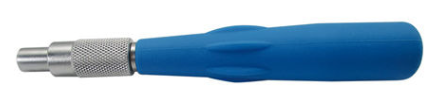

Screwdriver handle
| Available sizes | — |
Bending Jig for in-plate bending (Mini)
| Available sizes | 3.5mm, 4.0mm |

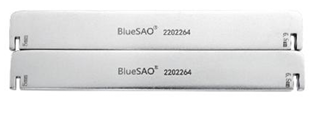

Bending Iron
| Available sizes | 5/ 6.5mm; 8/9mm; 10/11mm |

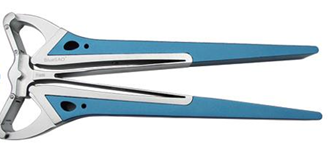

Bending Pliers for In-Plane Bending
| Available sizes | 5/ 6.5mm; 8/9mm; 10/11mm |

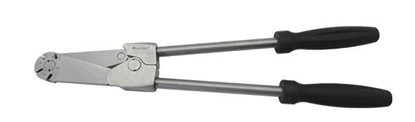

Bone plate cutter
| Available sizes | 5/ 6.5mm; 8/9mm; 10/11mm |

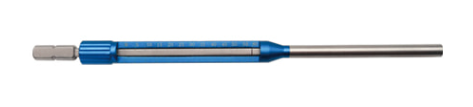

Depth Gauge
| Available sizes | 40mm, 60mm |
Screw holder
| Available sizes | HC2.4/1.5; HC3.2/2.4; HC4.0/2.7 |

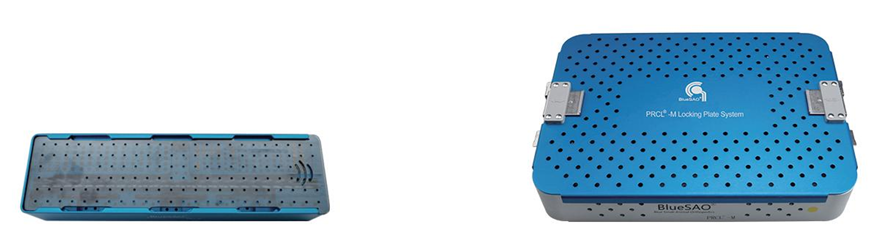

Trays& instrument containers
| Available sizes | — |
